safe retail and commercial petroleum filling use 3/4'' alloy fuel dispenser premium conventional automatic nozzle

Product Categories
ZHEJIANG DATIAN MACHINE CO.,LTD
Contact Now

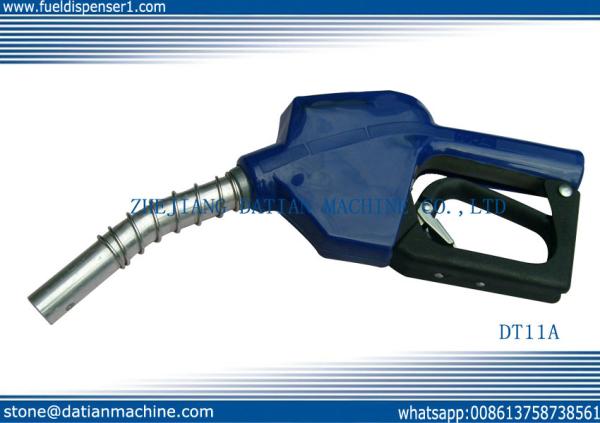

safe retail and commercial petroleum filling use 3/4'' alloy fuel dispenser premium conventional automatic nozzle

  • 1
  • 2

Brand Name : datian

Model Number : DT11A

Certification : UL

Place of Origin : wenzhou

MOQ : 1 pcs

Price : 15USD

Payment Terms : TT 30% advance

Supply Ability : 10000 per monthes

Delivery Time : 7 days

Packaging Details : 0.42*0.34*0.40

Material : AL Alloy

spout size : 15/16''

Inlet thread : BSPF/NPT "

Color : red/yellow/black/blue/green

Max flow : 75L/Min

package : 10pcs/CTNS

Net weight : 13KGS

Gross weight : 14KGS

Packing Size : 420*340*400mm

Contact Now

safe retail and commercial petroleum filling use 3/4'' alloy fuel dispenser premium conventional automatic nozzle

Oil inlet: NPT3/4", BSPT3/4".
Oil outlet: 15/16", 13/16 ".
Flux range: 0-60L/min
Nominal pressure: 0.18MPa.
Self sealing time: 0.1s (max).


Automatic nozzles for diesel, kerosene and all kinds of gasoline service.
Easily replaced spout simply removes the screw
Spout kits available
Low-profile aluminum body: Light weight, easier to handle, provides an attractive, image-enhancing appearance
Vacuum design: Back-sealing design
Selective casting process of body
Sand casting technique or high-pressure casting
Technique. High-pressure casting technique can reduce diesel foaming and static electricity
Hold-open rack is available for full service applications
One-hand control means easy setting to flow rate for customer's convenience
Full hand insulator protects both nozzle and vehicle, and insulates user's hands
Available colors: Color chart on inside back cover
Selective splash guard
100% factory tested

Body aluminum
Seals Buna-N, biton
Main stem seals viton cased oil seal / graphite with Teflon
Main stem stainless steel

Stone Chen (sales manager)
